Digital refractometer MISCO Brix 0 - 56 °Bx

1. Shopping
3. Overview
4. Finish
Foto: MISCO-BRIX56: Digital refractometer MISCO Brix 0 - 56 °Bx
Tea, Chai, Kombucha Industry, CNC Fruit juices Cow colostrum Syrup, Fruit concentrates

SKU: MISCO-BRIX56

Price: 565,00 EUR

Price excl. VAT: 466,94 EUR

VAT: 21 %

Availability: in stock

Warranty: 24/12 months ?

Brand: MISCO Refractometer

Quantity:

Description

This handheld digital refractometer MISCO is equipped with scale Brix in range from 0 to 56 °Bx and is designed for highly precise measurement of many substances. The value 1 °Bx means that in the 100 g of aqueous solution is dissolved 1 g of sucrose. In other words, in 100 g of aqueous sucrose solution is 1 g of sucrose and 99 g of water. That is why is sometimes used the percent sign (%) as a unit because the sucrose content is a sucrose percentage by weight.

Refractometers equipped with the Brix scale are used for measuring of fruit and vegetable juices sweetness, fruit juice concentrates, sweetness of grapes, fruit mash during the fermentation process, wort in brewery etc. It can be also used for measuring of non-sugar solutions when it is necessary to get a substance concentration. An example might be cutting/metalworking fluids/emulsions where we need to determine the oil concentration at the begin of process and the proportion of solid parts in the emulsion during the emulsion using. The machine manufacturer usually defines what Brix value is acceptable and what not.

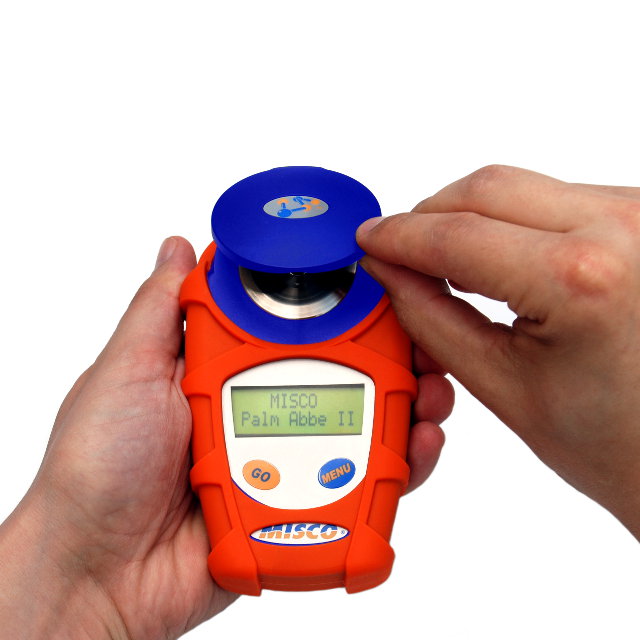

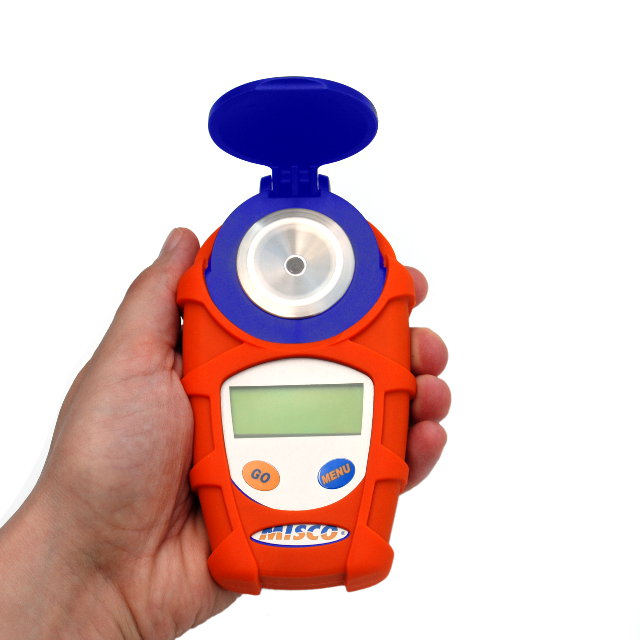

Digital refractometer MISCO is equipped with the sample well made from stainless steel. The measuring sample can be covered by an evaporation cover which prevents sample evaporation or air moisture absorption.
Use always this cover you get more accurate results.

The measuring prism is made from sapphire glass. The sapphire glass is the next hardest substance to diamond and that is why the prism is a virtually unscratchable surface.

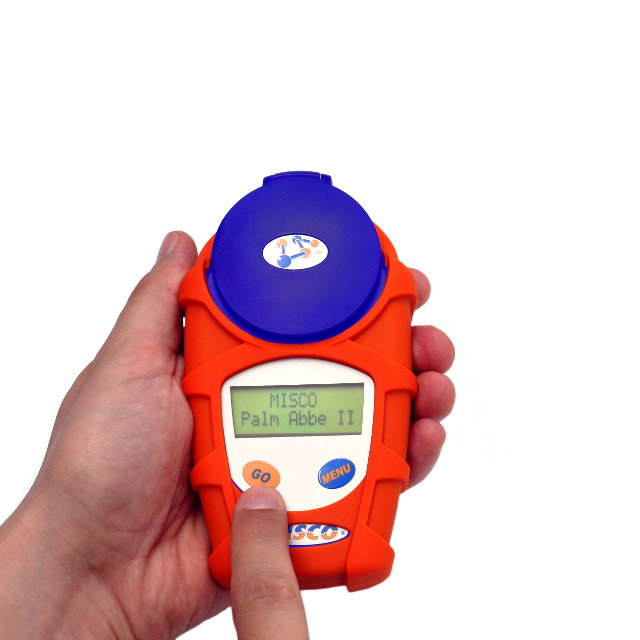

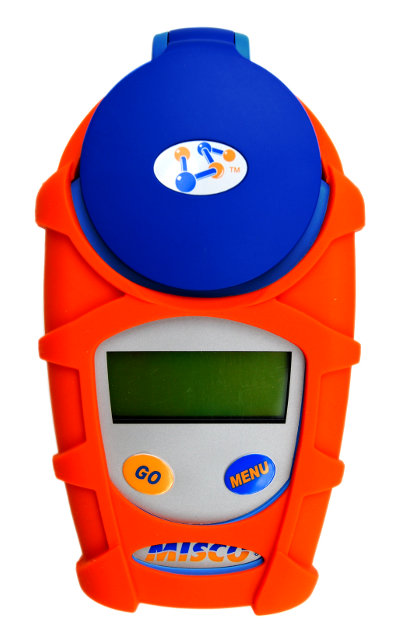

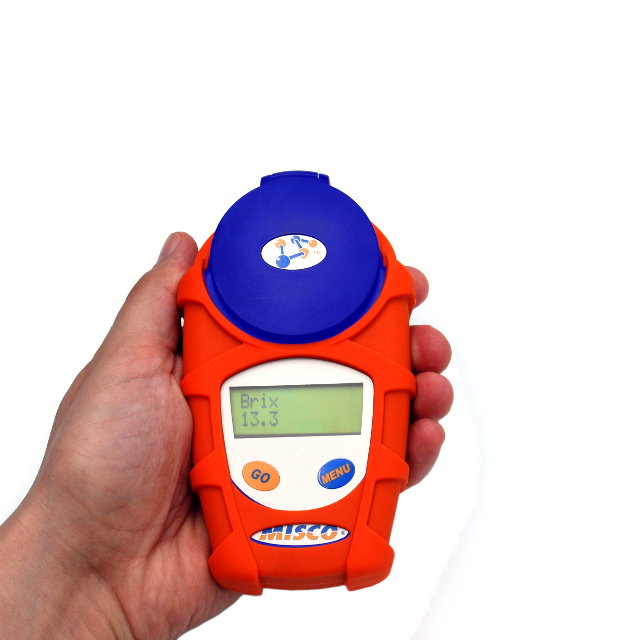

The user interface of this digital refractometer MISCO consists a large backlit 24-character display and two buttons - "GO" and "MENU". The measurement is therefore very intuitive and easy. The measured value is displayed including the unit. You need not remember meaning of any code because the display of this size allows to show full text messages, warnings or errors.

The usual concentrations of selected substances (fruits, vegetable, berries etc.)

Title °Bx   Title °Bx
Metalworking emulsions 0 to 7   Rowan fruit 14
Beer wort 0 to 20 Semi-plums 15 to 18
Tomato juice 3 to 6 Prunus domestica Durancie 15 to 22
Peach juice 6 to 12 Dairy beverages 16 to 21
Orange juice 6 to 13 Plum 18 to 22
Apricots 8 to 11 Common juniper - berries 30
Sour cherry 8 to 18 Sorbets 25 - 32
Pears 8 to 22 Fruit juice concentrates 42 to 68
Damson (Prunus domestica insititia) 9 to 14 Condensed milk 52 to 68
Mirabelle plum (Prunus domestica syriaca) 10 to 15 Vegetable oil 57 to 90
Cherry 10 to 18 Sugar syrup 58 to 80
Great yellow gentian (bitter root) - root 10 to 25 Maple syrup 66
Apple juice, carbonated soft drinks 10 to 22 Fruit preserve, Jam, Jelly, Marmalade 60 to 70

The calibration

The calibration is performed by distilled water (eventually by ordinary tap water) and it takes just a few seconds.

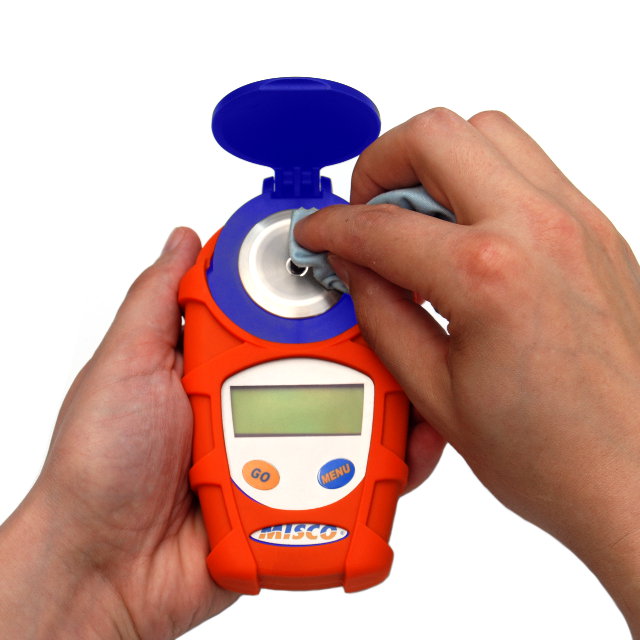

We recommend to clean and dry wipe the measuring prism prior to measurement!

The measurement

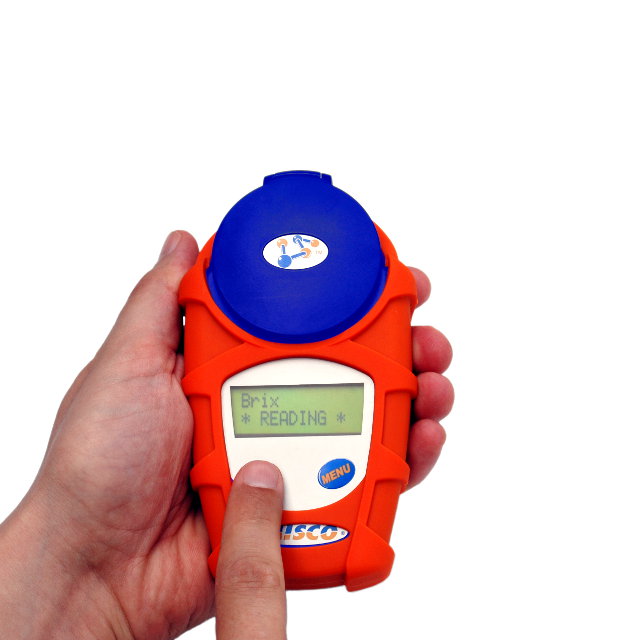

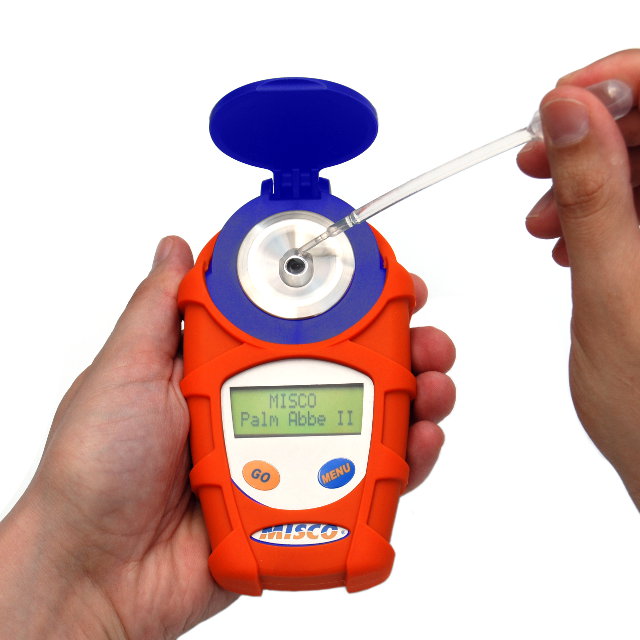

Place a few drops of the liquid onto the sapphire prism at the bottom of the sample well. Close the evaporation cover and allow some time for the temperature to equalize. Press the "GO" button and the result value in degrees Brix will be displayed in a few seconds.

The measurement precision

The precision of the MISCO digital refractometers provides the Palm Abbe OPTICAL-ENGINE®. This Optical-Engine uses high-precision optics with a linear detector array containing 1024 elements (seven times more elements than refractometers from other producers).
This detector array allows to measure with the precision higher than ±0.1 °Bx.

The measuring results measured by the digital refractometer MISCO is comparable to mid-range benchtop refractometers costing thousands of euro more!
Digital refractometer MISCO is a laboratory precision instrument for a reasonable price.

Automatic temperature compensation

Digital refractometers MISCO have a nonlinear temperature compensation specific to sucrose solution.
Temperature compensation is automatic between 0 and 50 °C (32 to 122 °F).


Package contents

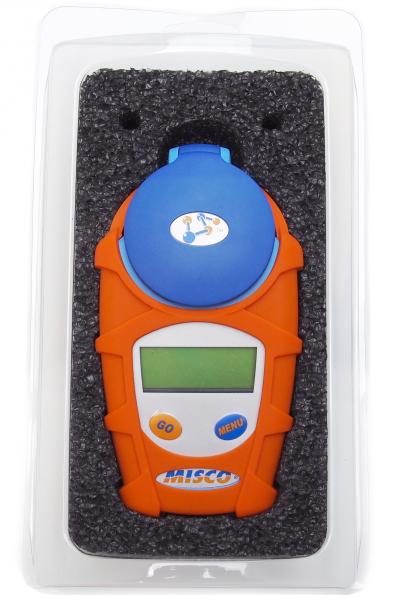

Refractometer in an orange protective silicone sleeve, 4 plastic pipettes, lightweight transparent foam-filled packaging.


General technical specifications

Scale range and resolution 0 to 56 °Bx (0.1 °Bx)
Calibration liquid Distilled water, eventually tap water
Prism window material Sapphire glass
Detector elements 1024
Well (sample area) material Stainless steel
Sample evaporation cover Yes
Min. sample volume 0.3 ml
Measuring time < 5 s
Light source Precision LED @ 589.3 nm
Display LCD
Display characters 24 characters in 2 lines (12 x 2)
Display backlight Yes
Display language English, French, German, Russian, Spanish
Temperature compensation method Automatic, sucrose compensation
Temperature range 0 to 50 °C (ambient temperature)
Power source 2 AAA bateries
Battery life > 5000 readings
Dimensions 145 x 75 x 37 mm
Weight 250 g
Body material Plastic (Valox), blue colour
Water resistance IP65 - splashing water
Error codes Text-based
Approvals and certifications CE marking
Country of origin United States
